WASTE-WATER TREATMENT SYSTEMS

Electronic Treatment Replacing  Chemicals for Calcium & Struvite Scale Formation
concept-04 (1)_edited_edited.png

WASTEWATER TREATMENT

SCALE CONTROL SOLUTIONS

  • Anaerobic Digesters

  • Evaporators

  • Reverse Osmosis Systems

  • Bio- Reactors

  • Areas of High Kinetic Energy (high turbulence)

  • Pipe Connections  *especially elbows

  • Pumps are a Prime Location for Treatment and Protection

  • Valves

  • Aeration Assembly

  • Internal Pumping Components

  • Plant Overflow Box of Anaerobic Digesters

  • Heat Exchangers

  • Wastewater Sludge Transfer Line

  • Plant Centrifuges

  • Rollers of the Belt Press

PH adjust inner tank_edited.jpg

How it Works

FlowScience technology produces an electrically generated surface catalytic effect that initiates the formation of microscopic seed crystals, clusters of calcium carbonite and other mineral components. These seed crystals and clusters prevent the formation of hard mineral scale on equipment surfaces.



The technology itself will inhibit the formation of new scale and, in the majority of cases, it will loosen or eliminate existing scale deposits from process piping, pumps, and other equipment throughout the system.

REPLACES CHEMICAL TREATMENT & JETTING


Control Hub

Weatherproof PVC Shielding

Treatment Pads Go on the Exterior Side

Durable Treatment & Power Cables

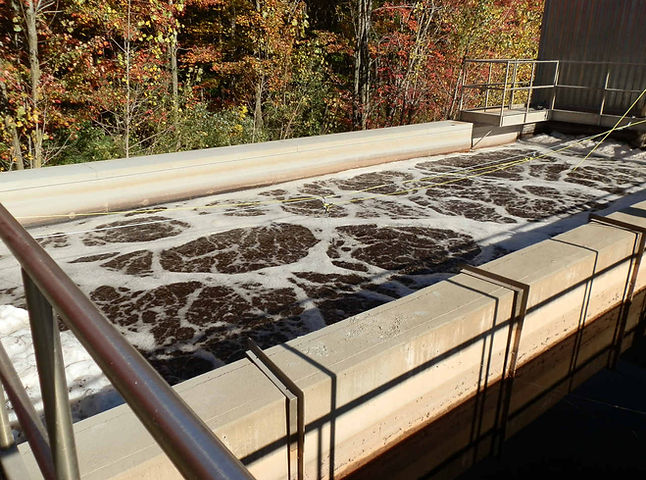

BIO-REACTOR SMBR

PROJECT SUMMARY:

Bio-reactors are a high impact, scale-able, cost-effective option for sustainable leachate treatment.  Offering many advantages to other technologies the SMBR faces challenges with uninterrupted biological growth due to leachate scaling of suspended media.  Once media is scaled, replacement and shut down cleaning is costly.  A solution was needed.

Bioreactor scale solutions
SOME PROJECTS

Gii Scale Control SOLVES Fouling on Media

BEFORE
scaled Media from bioreactor
AFTER
descald media from bioreactor
MSW WASTE-WATER TREATMENT FACILTY

PROJECT SUMMARY:

The MSW Leachate Treatment Facility was looking for a solution to replacing chemical addition and manual scale formation removal.  Chemistry conditions fluctuated and shut-downs were time consuming and challenging.  Compliance was sometimes an issue with theories as to the cause.

The addition of FlowScience LSC Systems in several locations and with custom set-ups would become the more permanent solution improving the conditions exponentially and reducing costs to the operation.



 Flowscience today treats the entire facility.

Greentree Tank app photo.JPG

Struvite Formation Tale Tell Signs

• High pH is a warning for the potential struvite formation
• High conductivity increases the potential for struvite formation
• Low temperatures foster the environment for struvite formation
• Higher concentrations of ammonium, phosphate and magnesium enable struvite precipitation

Rough surface areas are one of the first areas to look for Struvite formation, when Struvite crystal rock is not 100% removed from the different surfaces, the remaining rough edges will form struvite more quickly.
